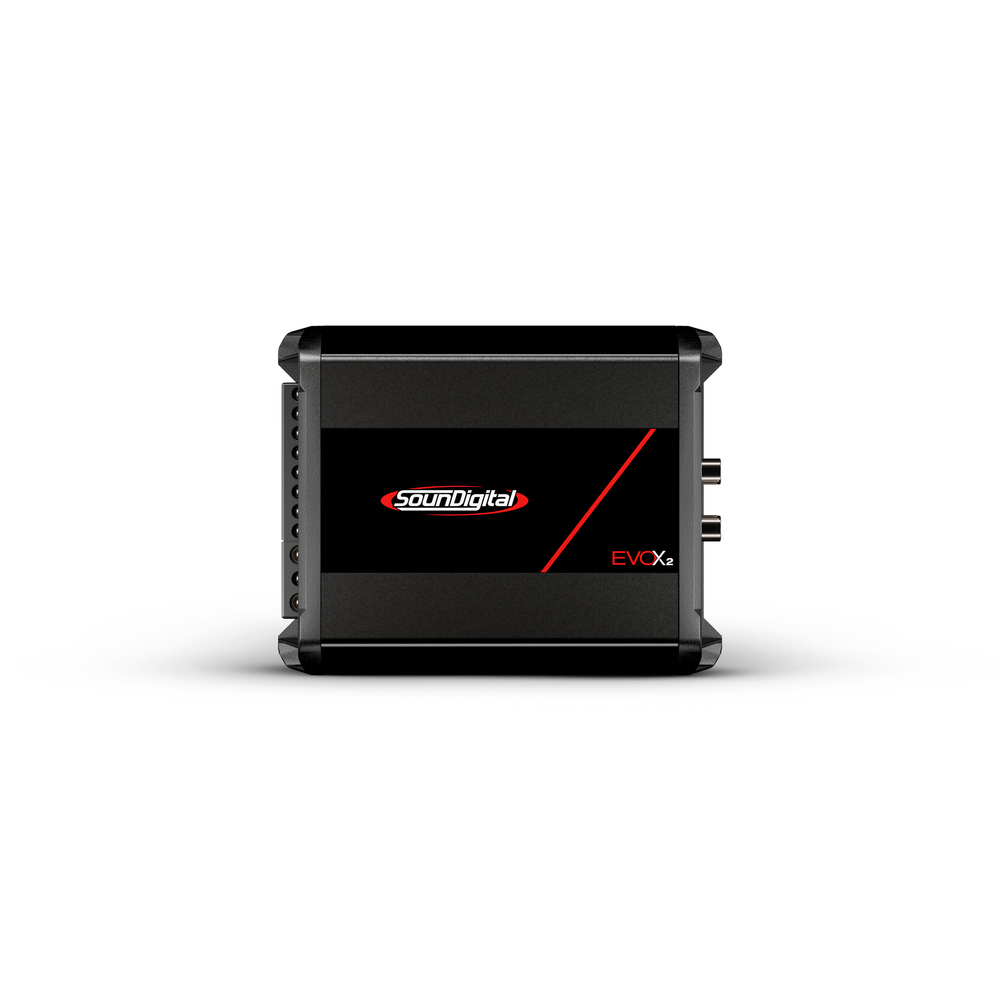

800.4 EVOX2 – 4 OHMS
Power @ 2Ω: 4 X 200W
Power @ 4Ω: 4 X 132W
Bridge Power @ 4Ω: 2 X 400W
Bridge Power @ 8Ω: 2 X 264W
Frequency Response (-3dB):
5Hz ~22kHz
Low Pass Filter:
45Hz ~ 850Hz
High Pass Filter:
45Hz ~ 850Hz
Operating Voltage:
8V ~ 16V
SNR:
91dB
Input Sensitivity:
0.2V ~4V
Current Draw (Music):
35A
Current Draw With Resistive Load:
70A
Total Efficiency:
80%
Damping Factor:
200
Power Cable:
10mm² (7 AWG)
Audio Output Cable:
2 x 1.5mm (15AWG)
Recommended Fuse (Music):
40A
Recommended Battery (Minimum):
60Ah
Width:
4.4 in / 11,3 cm
Length:
5.8 in / 14,8
2 in / 5,1 cm
