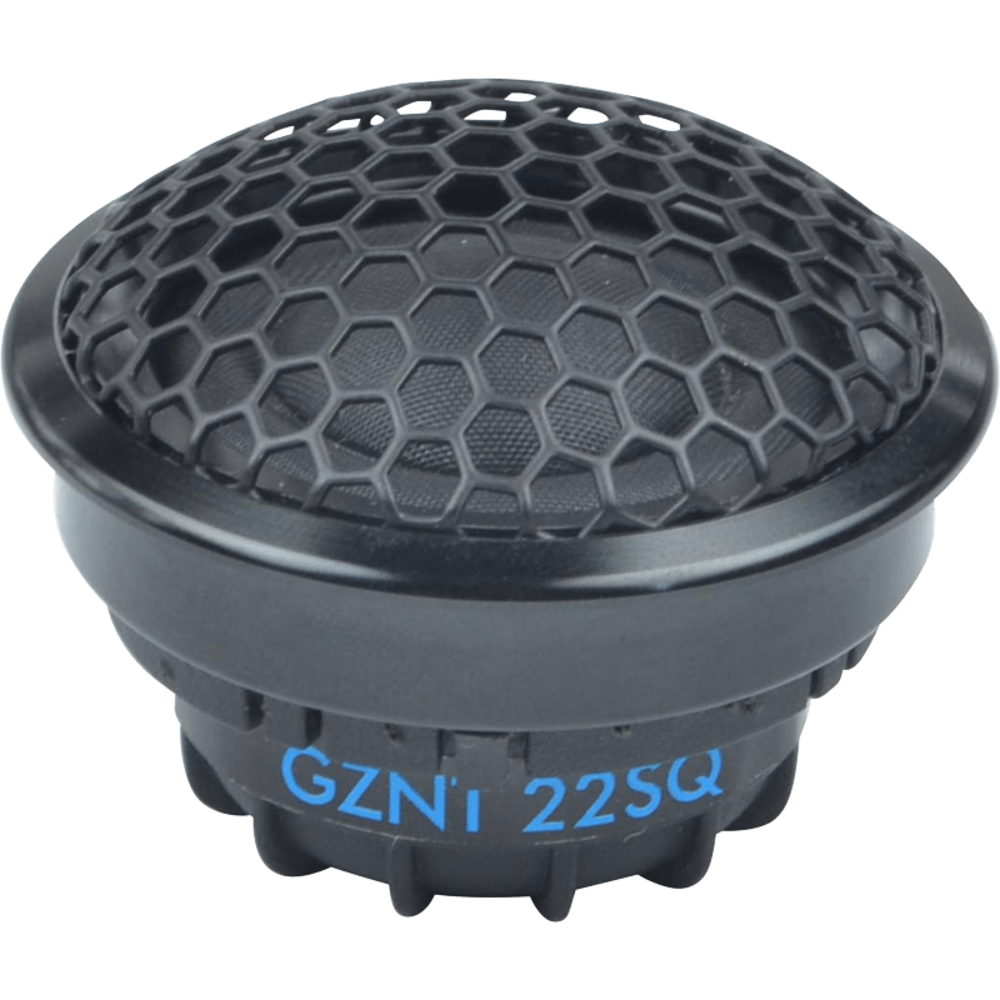

GZNT 22SQ Ήχος – Car Audio Tweeter

100 Watts max
0.87″ high performance silk dome tweeter with coupled chamber
22 mm / 0.7″ high performance tweeter
Coated soft dome
CCA voice coil
Anodyzed aluminum housing
Coupled chamber
Wave diffuser
Neodymium motor
Gold plated terminal
1 pair / package
Model
High-Performance tweeter
Diameter
22 mm / 0.87″
Power Handling (RMS/max.)
60 / 100 Watts
Impedance
4 Ohms
Efficiency
89.5 dB
Frequency Response
2000 Hz – 28 kHz, 2000 Hz – 30 kHz
Voice Coil
22 mm / 0.87″
Membran Layout
Coated soft dome
Magnet material
Neodymium
Mounting Depth
23.1 mm / 0.91″
Resonance Frequency (Fs)
825 Hz
