6000 Watts RMS

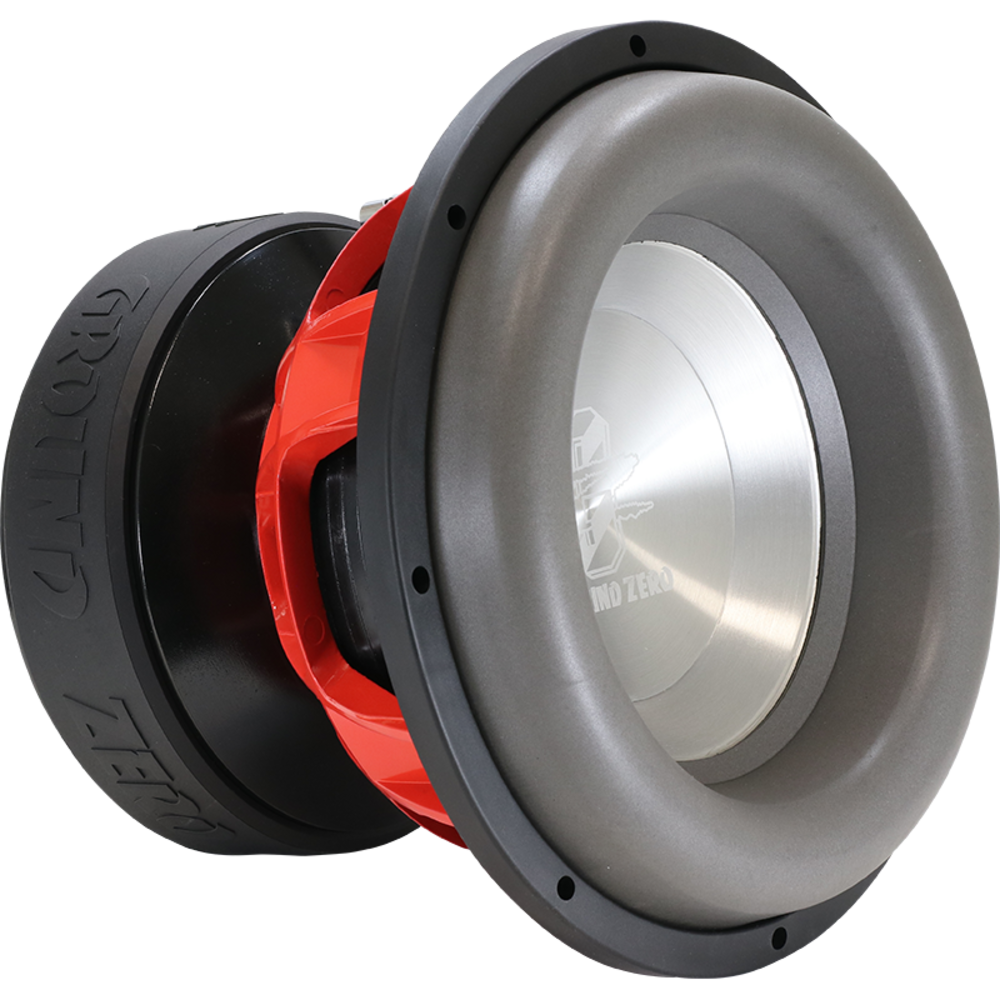

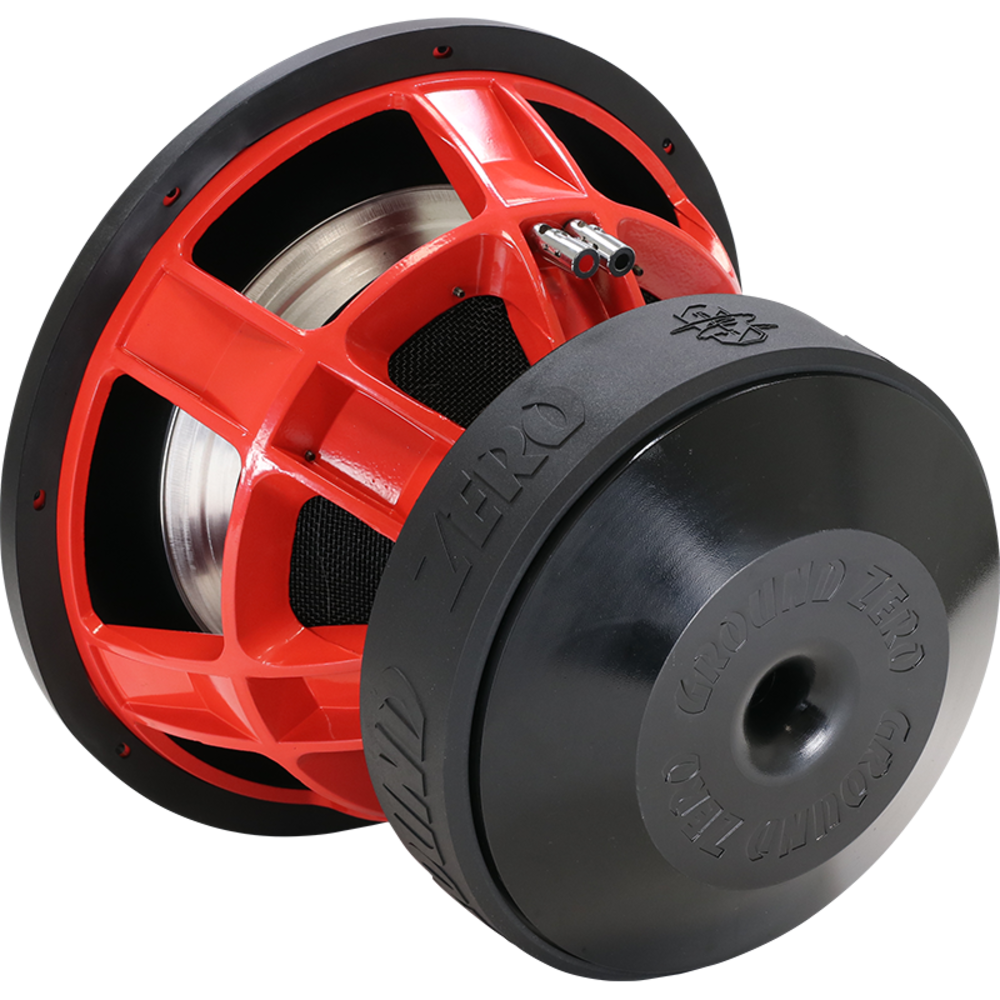

15″ high power low bass subwoofer with aluminum cast basket and Xmax surround
15″ high power long stroke subwoofer
Klippel® optimized
Aluminum cone
3-layer long stroke surround
Solid aluminum cast basket
100 mm / 4″ flat wire voice coil
4-layer Nomex spider
Aluminum dust cap
Model
High-Power Low-Bass-Subwoofer
Power Handling (RMS)
6000 Watts
Impedance
2x 1 Ohms
Efficiency
84.3 dB
Power Recommendation
4000 – 8000 Watts
Voice Coil
100 mm / 4″ CCA
Membran Layout
Aluminum
Max. Excursion (Xmax)
80 mm / 3.15″
Mounting Ø
358 mm / 14.09″
Mounting Depth
297 mm / 11.69″
Resonance Frequency (Fs)
31.6 Hz
Overall Qaulity (Qts)
0.406000 Watts RMS
15″ high power low bass subwoofer with aluminum cast basket and Xmax surround
15″ high power long stroke subwoofer
Klippel® optimized
Aluminum cone
3-layer long stroke surround
Solid aluminum cast basket
100 mm / 4″ flat wire voice coil
4-layer Nomex spider
Aluminum dust cap
Model
High-Power Low-Bass-Subwoofer
Power Handling (RMS)
6000 Watts
Impedance
2x 1 Ohms
Efficiency
84.3 dB
Power Recommendation
4000 – 8000 Watts
Voice Coil
100 mm / 4″ CCA
Membran Layout
Aluminum
Max. Excursion (Xmax)
80 mm / 3.15″
Mounting Ø
358 mm / 14.09″
Mounting Depth
297 mm / 11.69″
Resonance Frequency (Fs)
31.6 Hz
Overall Qaulity (Qts)
0.40
Equiv. Air Volume (Vas)
27 L / 0.95 cu.ft.
Equiv. Air Volume (Vas)
27 L / 0.95 cu.ft
