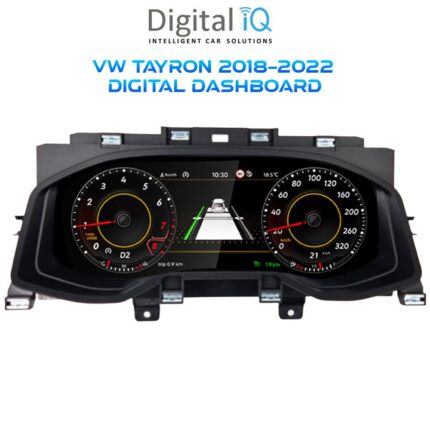

Digital Instruments Cluster (Dashboard)
Original Analog Instrument Cluster Upgrade
Features
- Intelligent control: Intelligent monitor can show your car informations in real time.
- Customization: Easily and widelly customizable.
- Eight view mode: intelligent control of the whole car.
1. Classic mode,
2.Exercise mode,
3.Digital mode,
4.Gear and speed mode,
5.Consumption and mileage,
6.Economic mode,
7.Driving assistance mode,
8.Navigation mode. - 12.3 inch Screen 1920×720 HD IPS screen with 60fps.
- Linux Operating system.
- Supporst Mobile phone wireless projection screen.
- Supports original car’s Bluetooth phone call or music play.
- WIFI remote upgrade.
- Easy Installation.
Specifications
- CPU: RENESAS Car gauge chip —R-CAR M2N R8A77930, Arm dual core 1.5GHz, working temperature – 40 ° C ~ + 105 ° C.
- GPU is imaging’s powervr544 dual core 312MHz, supports true 3D, pixel fill rate 1250m pixel / s, floating-point operation 20gflop / s.
- Dual LVDS output or RGB output, support resolution 1920* 720@60fps.
- Three CVBS inputs.
- HDMI input or LVDS input 1920* 720@60fps.
- Supports 2-way SD card interface.
- 2-way USB 2.0 interface.
- Audio in / out.
- 2-way can.
- 4-way serial port, 2-way I2C, 2-way SPI
- Length: 454mm.
- Width: 234mm
- Height: 230mm.
- Weight: 2kg
