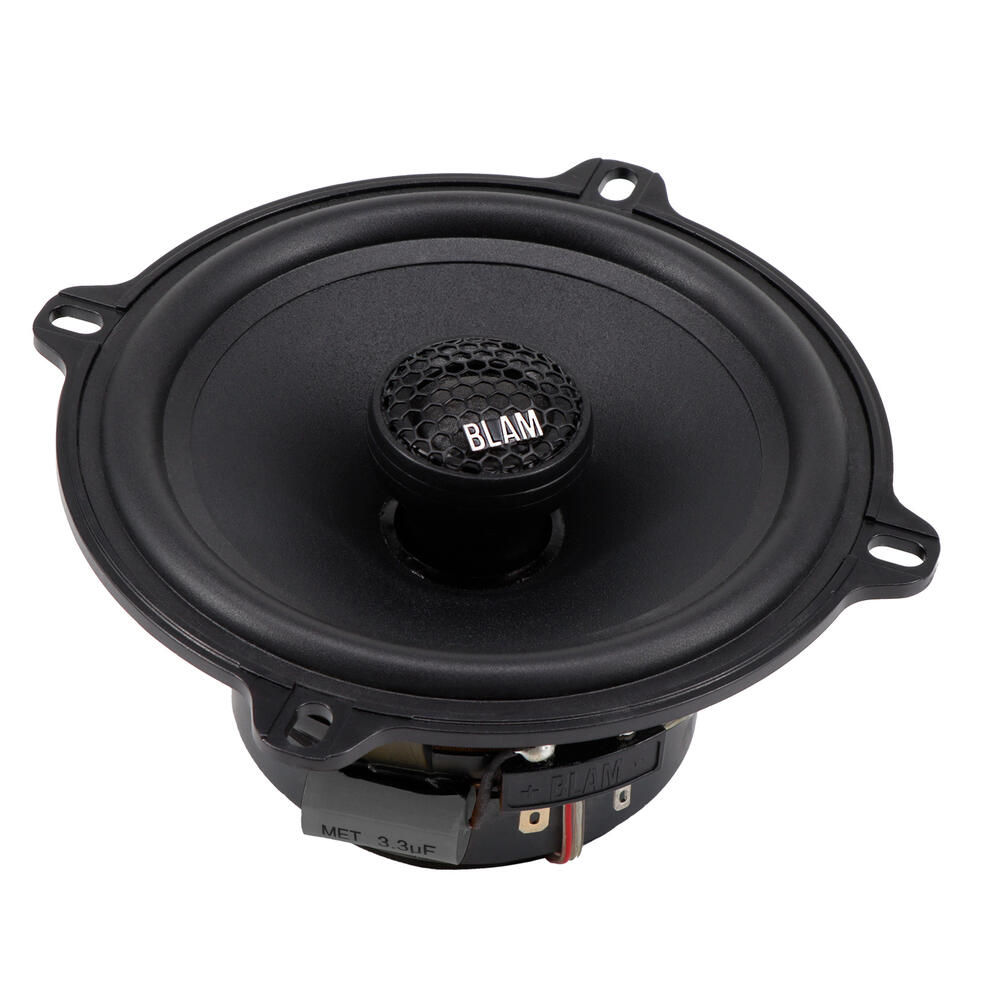

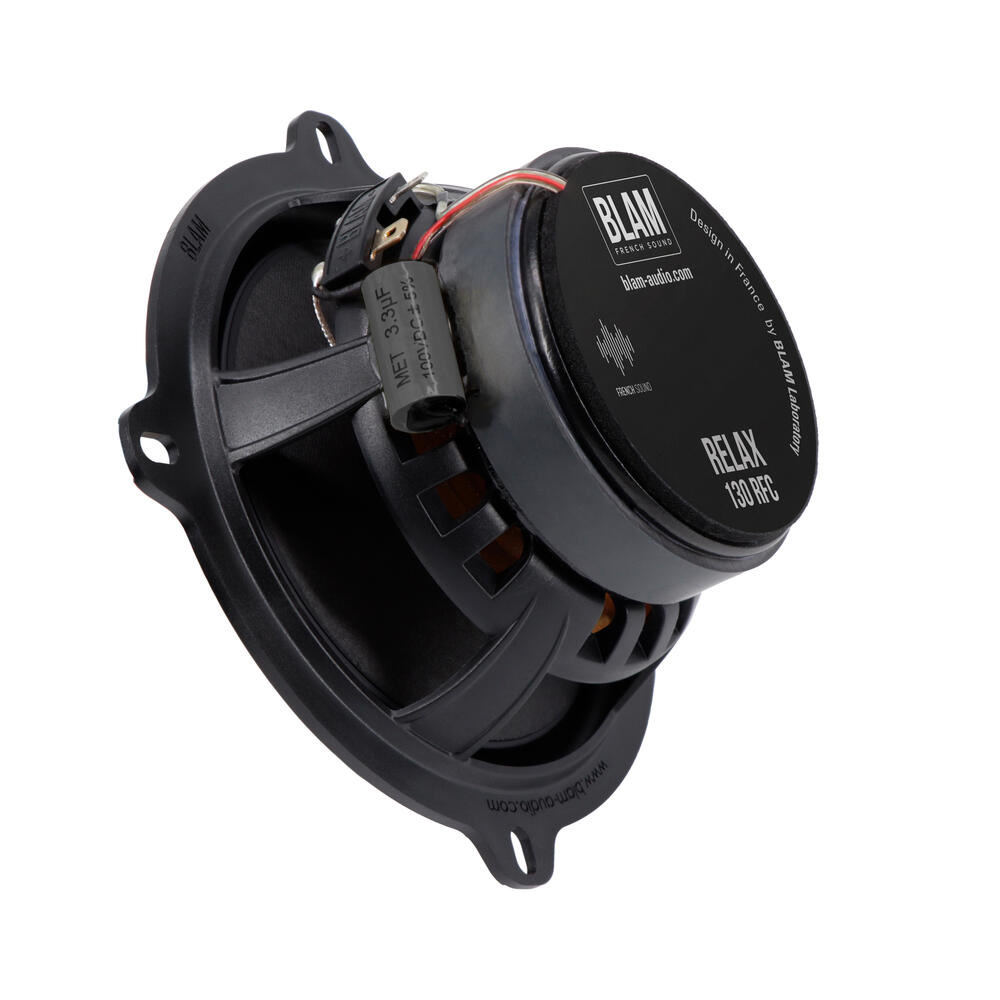

Component Speaker
Max power 120 W Nominal power 60 W
Impedance 3 : Freq. Response 80 Hz – 25 KHz
Sensitivity (2,83V/1m) 92,3 dB
Magnet Ferrite Magnet size Ø x h 80 x 15 mm 3,150‘’x 0,591‘’
Total driver displacement 0,158 l 0,006 cf
Weight of one component 0,785 kg 1,731 lb
Voice coil Ø 25 mm 0,984“
Voice coil height 11 mm 0,433“
Cone Cellulose pulp
